Available in constant current and constant voltage options, MEGAMAN® LED converters are designed to optimise the performance of its LED reflector.
-

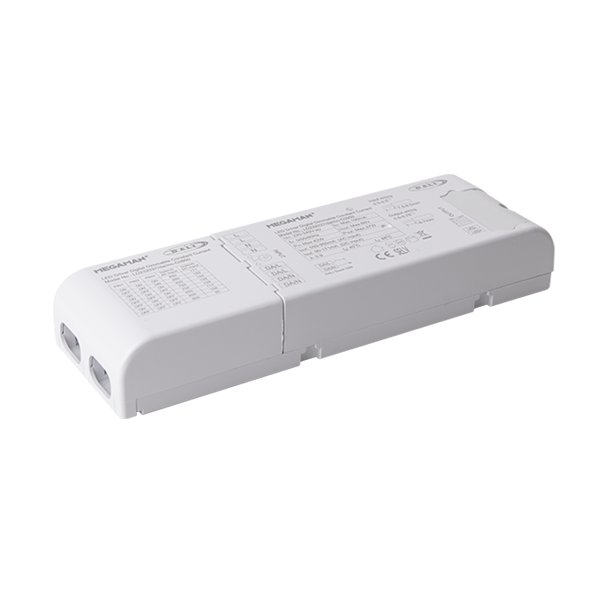

LD232037/da/mc-C0950
Voltage (V): 220-240V
Height (mm): 32
Rated Life (hrs): 50000
Mains Input Voltage (V): 230
Output Current (mA): 950
Max. System Wattage (W): 37
Length (mm): 200
Width (mm): 64
Details -
LD238040/b3/mc-C1000
Voltage (V): 220-240V
Height (mm): 33
Rated Life (hrs): 50000
Mains Input Voltage (V): 230
Input Voltage Range (V): 220 - 240
Output Current (mA): 1000 / 750
Max. System Wattage (W): 36
Length (mm): 64
Details -
LD239024/b3/mc-C0600
Voltage (V): 220-240V
Height (mm): 33
Rated Life (hrs): 50000
Mains Input Voltage (V): 230
Input Voltage Range (V): 220 - 240V
Output Current (mA): 600 / 450
Max. System Wattage (W): 24
Length (mm): 64
Details -
LD244019/b3/mc-C0550
Voltage (V): 220-240V
Wattage (W): 19
Height (mm): 33
Rated Life (hrs): 50000
IP Rating: IP20
Output Voltage (V): 30 - 36V
Output Current (mA): 250 / 350 / 450 / 550
Length (mm): 201
Details -
LD244021/b3/mc-C0600
Voltage (V): 220-240V
Wattage (W): 21
Height (mm): 33
Rated Life (hrs): 50000
IP Rating: IP20
Output Voltage (V): 30 - 36V
Output Current (mA): 300 / 400 / 500 / 600
Length (mm): 201
Details -
LD244034/b3/mc-C950
Voltage (V): 220-240V
Wattage (W): 34
Height (mm): 33
Rated Life (hrs): 50000
IP Rating: IP20
Output Voltage (V): 30 - 36V
Output Current (mA): 650 / 750 / 850 / 950
Length (mm): 201
Details -
LD244036/b3/mc-C1000
Voltage (V): 220-240V
Wattage (W): 36
Height (mm): 33
Rated Life (hrs): 50000
IP Rating: IP20
Output Voltage (V): 30 - 36V
Output Current (mA): 700 / 800 / 900 / 1000
Length (mm): 64
Details
