ESTELA Recessed LED Luminaires (Integrated)
Specification Sheet
FPL62400v0-ex
| Electrical Data | |
| Nominal Voltage (V) | DC30-36V |
| Power Factor (λ) | > 0.9 |
| Product Data | |
| Product Wattage (W) | 27 |
| Colour Temperature (K) | Coolwhite (4000K) |
| Colour Render Index (Ra) | > Ra80 |
| Colour | White (WH26) |
| Materials | Metal housing |
| Protection Class | Class I |
| Colour Consistency (SDCM) | ≤4 |
| Dimmable | Yes |
| Weight (g) | 3161 |
| Application | School, Department Stores, Offices |
| Performance Data | |
| Rated Life (hrs) | 50000 |
| Rated Life (hrs) | 50000hrs at L80 B10 at Ta 25°C |
| IP Rating | IP20 |

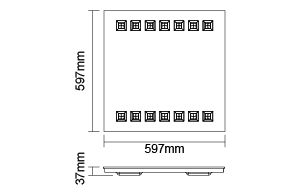

| Product Dimensions | |
| Length (mm) | 597 |
| Width (mm) | 597 |
| Height (mm) | 35 |
|
Remarks Model No.: F62400RC-x External driver version (Compatible DALI dimming) |
|
