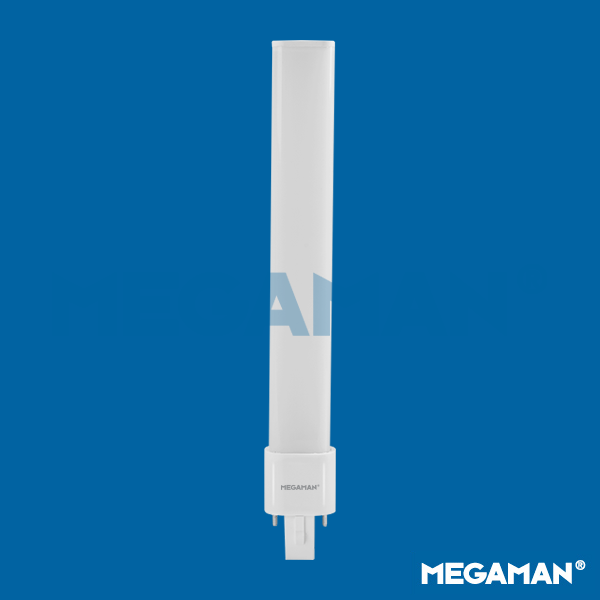

5.5W G23 760lm 3000K Ra80 Non-Dim
LED Plug-in Tube
Spectral Power Distribution
Specification Sheet
LP203055-OPv00+G23+830+V0240
| Electrical Data | |
| Voltage (V) | 220-240V |
| Frequency (Hz) | 50/60 Hz |
| Constant Current (mA) | 48 |
| Power Factor (λ) | ≥ 0.50 |
| Starting Time (sec) | < 0.5 s |
| Warm-up Time Up to 60% of the Full Light Output (sec) | Instant |
| Total Harmonic Distortion | 1.05 |
| Product Data | |
| Lamp Base | G23 |
| Product Wattage (W) | 5.5 |
| Equivalent Wattage (W) | N/A |
| Colour Temperature (K) | 3000 |
| Colour Render Index (Ra) | Ra80 |
| Materials | PC |
| Colour Consistency (SDCM) | 6 |
| Dimmable | No |
| Operating Temperature | -30°C to +45°C |
| Switching Cycles (times) | > 100000 |
| Weight (g) | 48 |
| Application | Kitchens, Living Rooms, Offices, Retrofitting Downlights, Retrofitting Sconces |
| Performance Data | |
| Total Luminous Flux (lm) | 760 |
| Luminous Flux (lm) | 760 |
| Rated Useful Luminous Flux (lm) | 760 |
| Luminous Efficacy (lm/W) | 138 |
| Rated Life (hrs) | 30000 |
| Product Dimensions | |
| Diameter (mm) | 21 |
| Width (mm) | 32 |
| Height (mm) | 236 |
