Specification Sheet

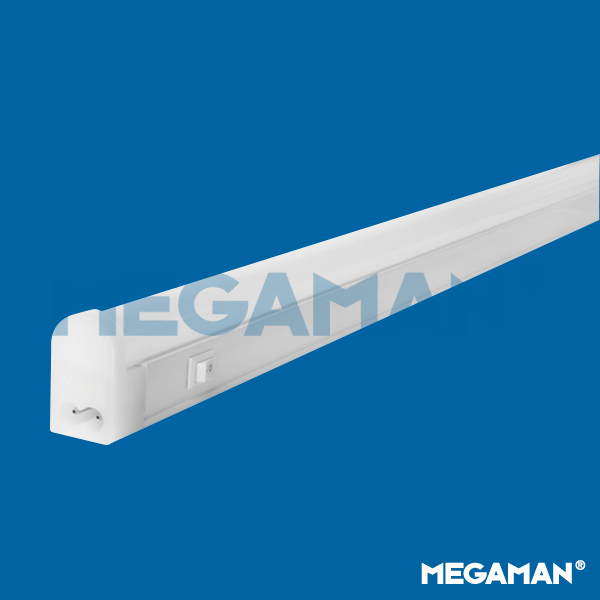

FIB71700v0
| Electrical Data | |
| Voltage (V) | 220-240V |
| Product Data | |
| Product Wattage (W) | 24.5 |
| Beam Angle (°) | 120 |
| Colour Temperature (K) | Warmwhite (3000K), Coolwhite (4000K) |
| Colour Render Index (Ra) | > Ra80 |
| Colour | White (WH13) |
| Materials | Polycarbonate |
| Protection Class | Class II |
| Dimmable | No |
| Operating Temperature | -30°C to +40°C |
| Application | Office, Display Shelves, Light Troughs, Shops and Boutiques, Wall Lighting |
| Performance Data | |
| Luminous Flux (lm) | 2000 [3000K], 2200 [4000K] |
| Luminous Efficacy (lm/W) | 82 [3000K], 90 [4000K] |
| Rated Life (hrs) | 35000 hrs at L70 B50 at Ta 25°C |
| IP Rating | IP20 |
| Product Dimensions | |
| Length (mm) | 1180 |
| Width (mm) | 23 |
| Height (mm) | 39 |
|
Remarks Accessories: LA8002 1.8m Power Cord LA8036 150mm Patch Cord LA8004 Angle Joint for PINOLITE LA8005 Mounting Clips (Comes with the MEGAMAN® PINO) LA8039 Female Pole Protective Cap |
|
